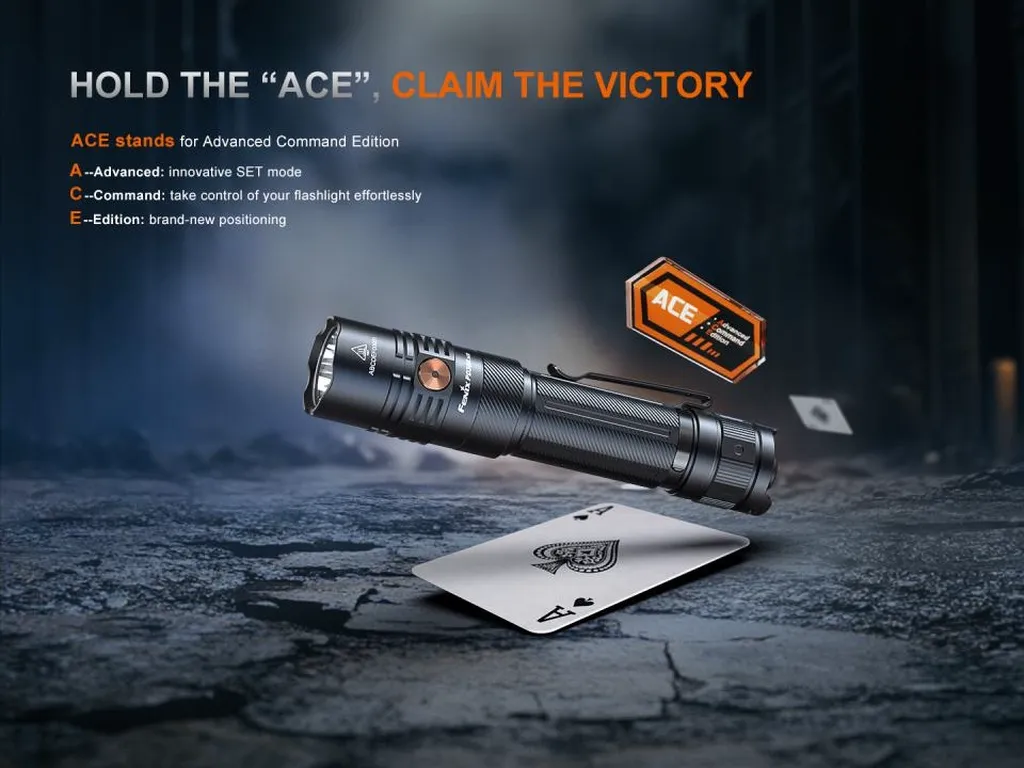

Fenix PD36R ACE Multi-Mode Tactical Flashlight
The Fenix PD36R ACE is a compact 3,000-lumen duty flashlight with a 415-meter beam, a SET function structure for customizable mode programming, and dual switches for fast access. Seven modes — including Strobe and SOS — handle everything from a 63-hour Eco run to short Turbo bursts. The ARB-L21-5000 V2.0 cell charges via USB-C, and the HAIII A6061-T6 body is IP68 sealed and 1-meter impact rated.
Packages
[PKG-PD36RACE-215000V20X2-A2]
Fenix PD36R ACE with two (2) extra ARB-L21-5000 V2.0 batteries and ARE-A2 charger
[PKG-PD36RACE-215000V20X2-D2]
Fenix PD36R ACE with two (2) extra ARB-L21-5000 V2.0 batteries and ARE-D2 charger
[PKG-PD36RACE-ALG18-AER04-ALG06-215000V20X2-A2]
Fenix PD36R ACE with ALG-18 Barrel Mount, AER-04 Remote Switch, ALG-06 Switch Multi Rail Mount System Clamp, two (2) extra ARB-L21-5000 V2.0 batteries and ARE-A2 Charger
[PKG-PD36RACE-ALG18-AER04-ALG05-215000V20X2-A2]
Fenix PD36R ACE with ALG-18 Barrel Mount, AER-04 Remote Switch, ALG-05 Remote Pressure Switch Mount, two (2) extra ARB-L21-5000 V2.0 batteries and ARE-A2 Charger
Specifications

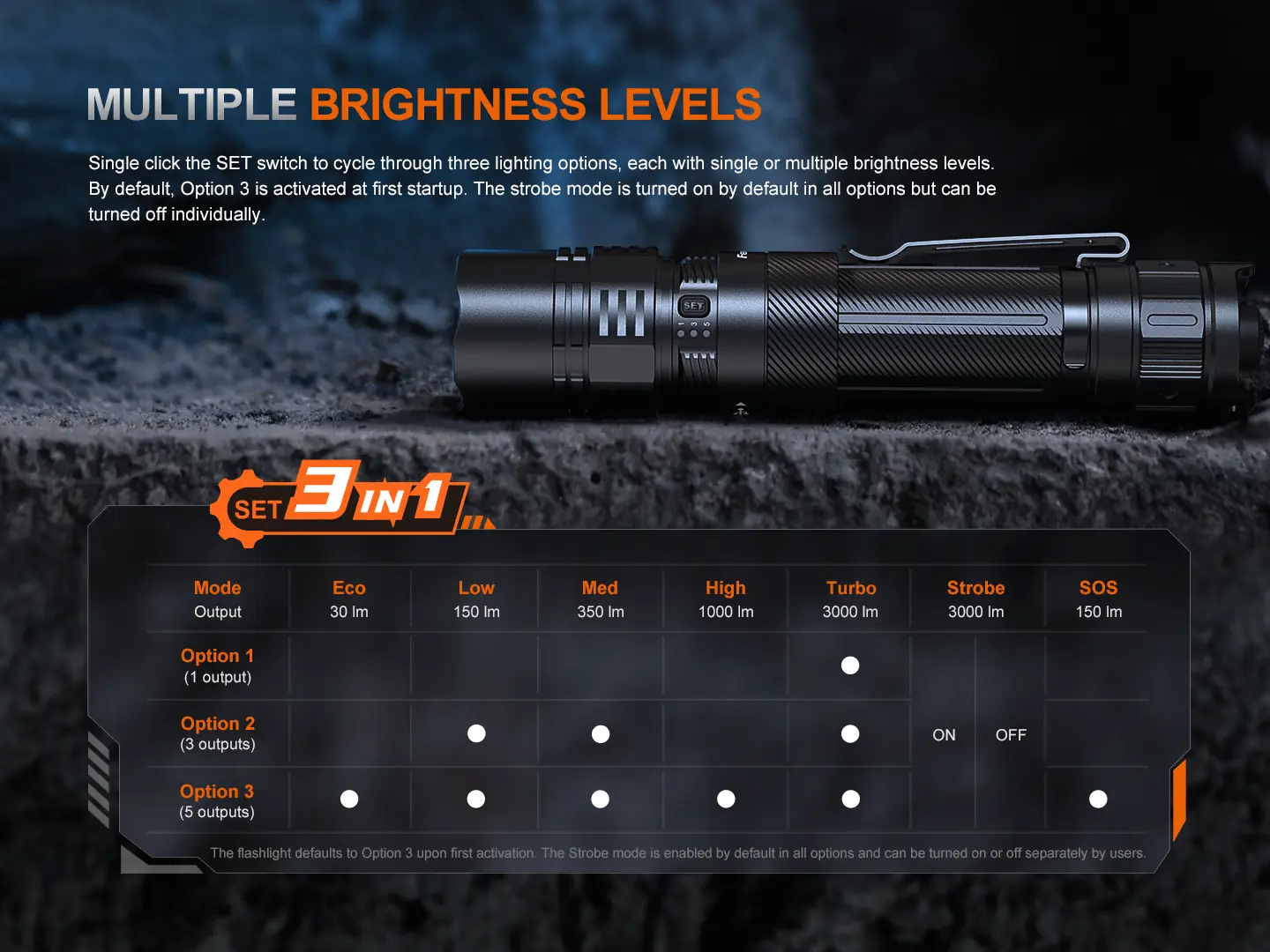

| ANSI FL-1 RATING | ||||
| OUTPUT MODE |
OUTPUT LUMENS |
MAXIMUM RUNTIME |
MAXIMUM DISTANCE |
MAXIMUM INTENSITY |
| TURBO | 3,000 | 3h 2min | 415 meters | 43181 cd |
| HIGH | 1,000 | 3h 28min | 235 meters | 13827 cd |
| MED | 350 | 8h 49min | 137 meters | 4705 cd |
| LOW | 150 | 21h 49min | 89 meters | 1981 cd |
| ECO | 30 | 63h 25min | 40 meters | 413 cd |
| STROBE | 3,000 | |||
| SOS | 150 | |||
Features
- Utilizes one Luminus SFT70 Gen2 LED with a lifespan of 50,000 hours.
- Tactical tail switch for instant activation; neck-mounted switch for output selection.

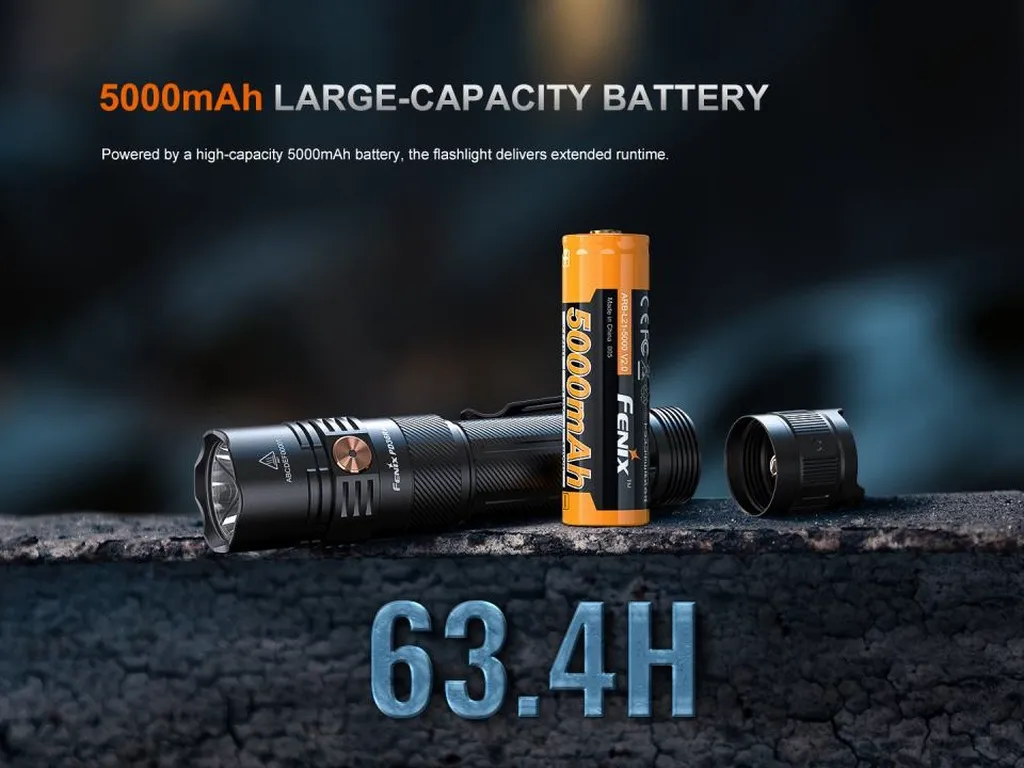

- Powered by a Fenix ARB-L21-5000 V2.0 battery.

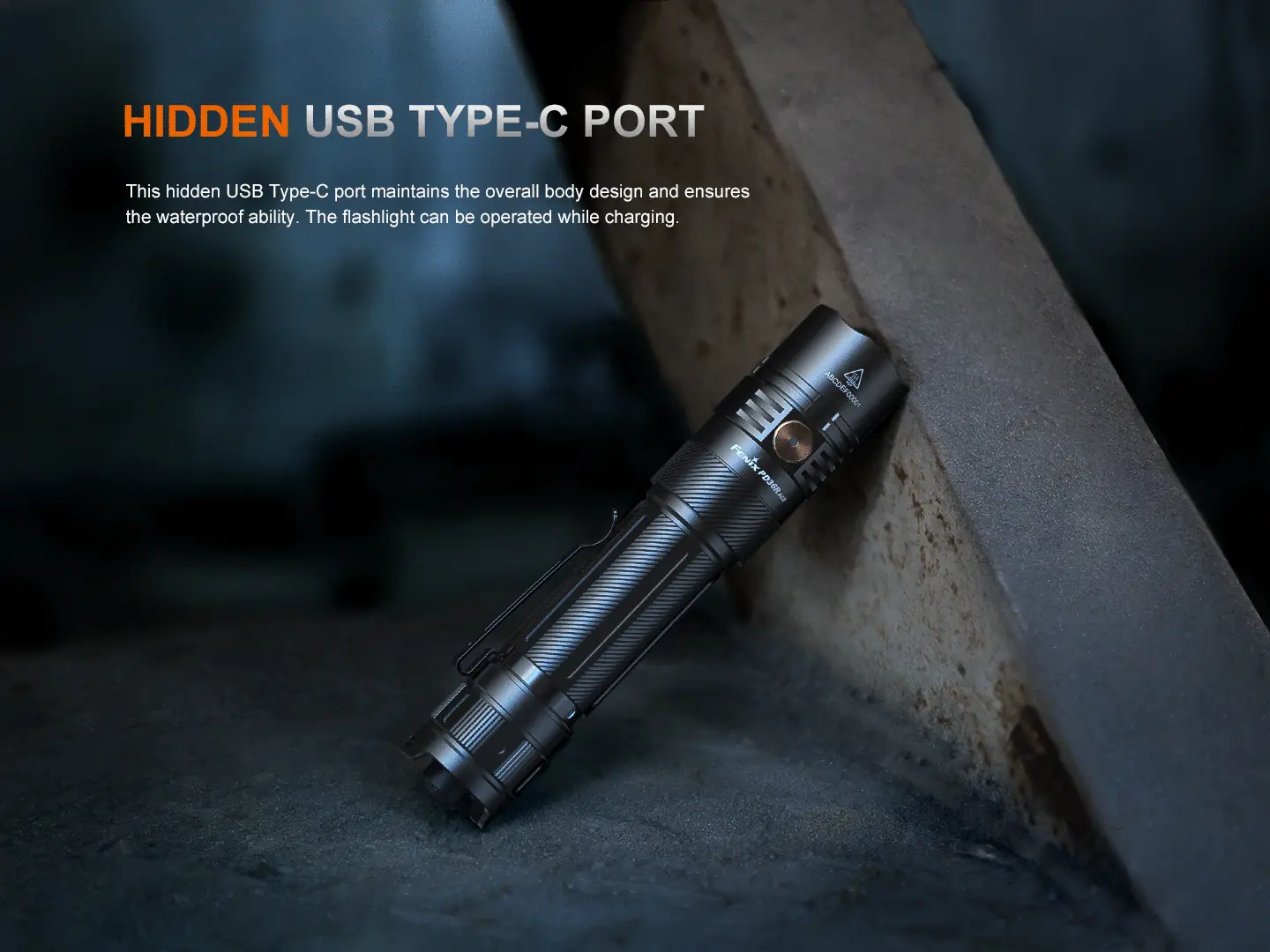

- Hidden USB Type-C charging port in the light neck for convenient charging.
- Boot-up battery level indication and low-voltage warning.

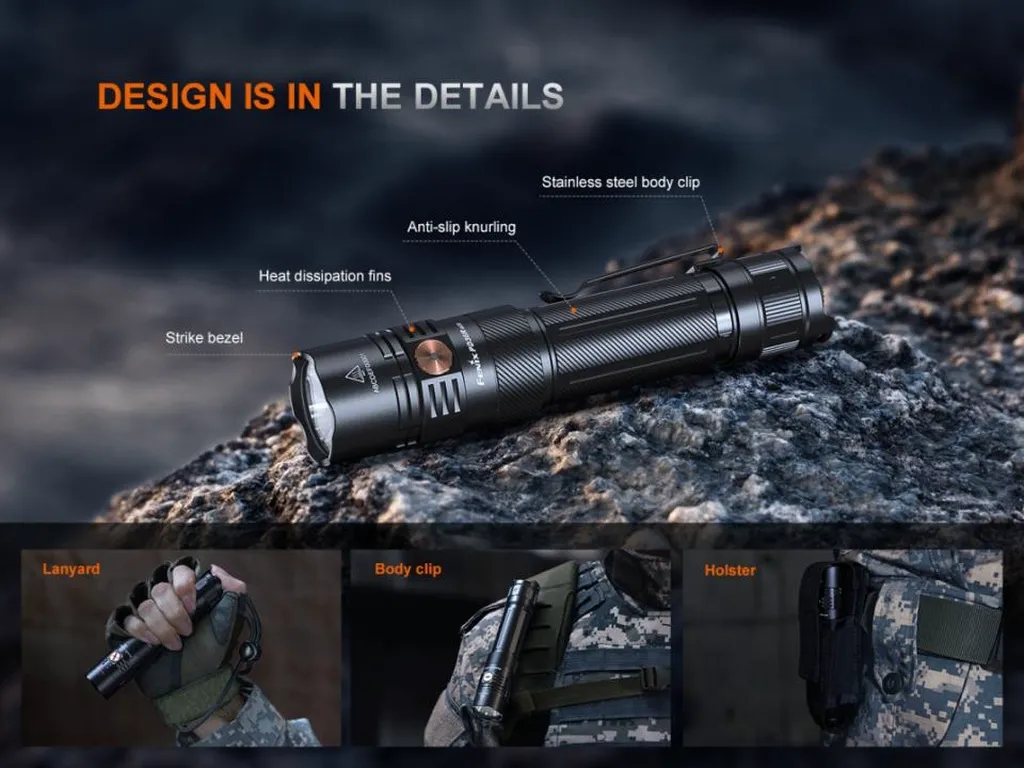

- Anti-roll and anti-slip body design.
- Included body clip for versatile attachment.
- Digitally regulated circuit for maintaining a stable output.
- Toughened ultra-clear glass lens with an anti-reflective coating.
- Reverse polarity protection, to protect from improper battery insertion.

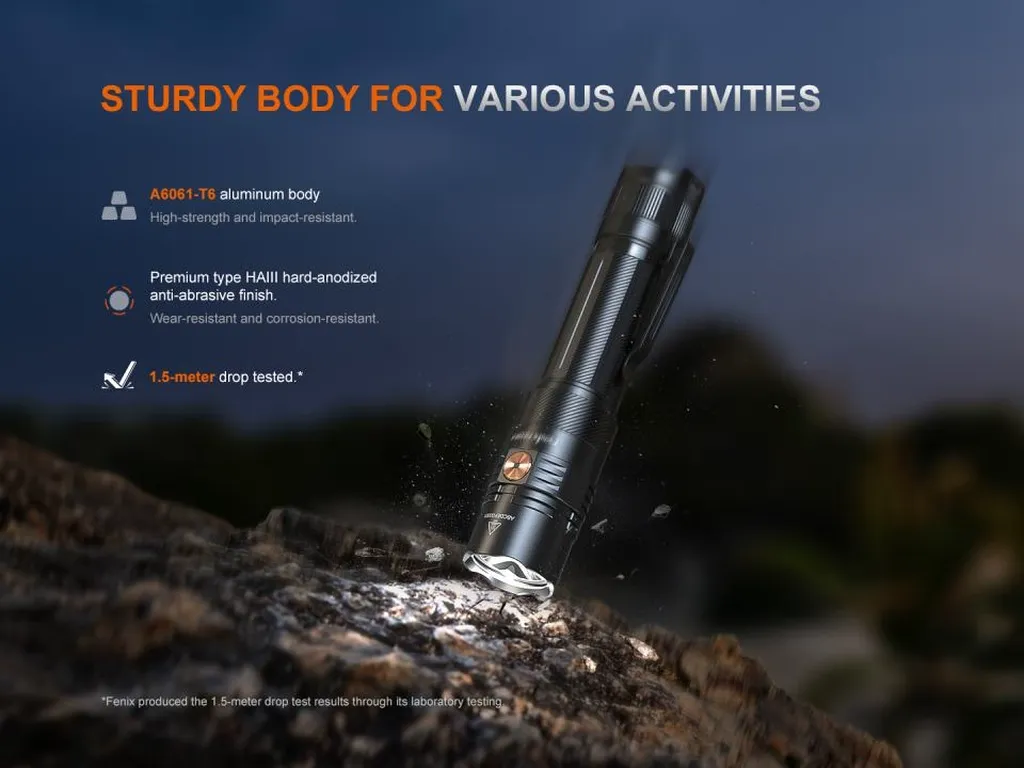

- Made of durable A6061-T6 aluminum.
- Premium type HAIII hard-anodized anti-abrasive finish.
Fenix PD36R ACE vs Fenix PD35R ACE
Same ACE family, same hybrid control scheme (tactical tail switch + neck-mounted side switch), just two different size and power classes. PD35R ACE is the 18650-format EDC model — 140.5 mm, 145 g, 2,000 lumens to 380 m on a 4,000 mAh ARB-L18-4000 cell. PD36R ACE is the 21700-format big-brother — 146 mm and 181.6 g, 3,000 lumens to 415 m on a 5,000 mAh ARB-L21-5000 V2.0 cell. Both charge via hidden USB-C in the light neck and share the same tail-plus-side-switch philosophy. Pick PD35R ACE if you want a slimmer EDC-friendly pocket tube; pick PD36R ACE if you want more output, longer runtime, and more throw — the 21700 cell is the only real size penalty.
| Fenix PD36R ACE | Fenix PD35R ACE | |
|---|---|---|
| Max output | 3000 lm | 2000 lm |
| Beam distance | 415 m | 380 m |
| Length | 146 mm | 140.5 mm |
| Weight | 181.6 g (with battery) | 145 g (with battery) |
| Battery | ARB-L21-5000 V2.0 | ARB-L18-4000 |
| Price (CAD) | $159.95 | $139.95 |

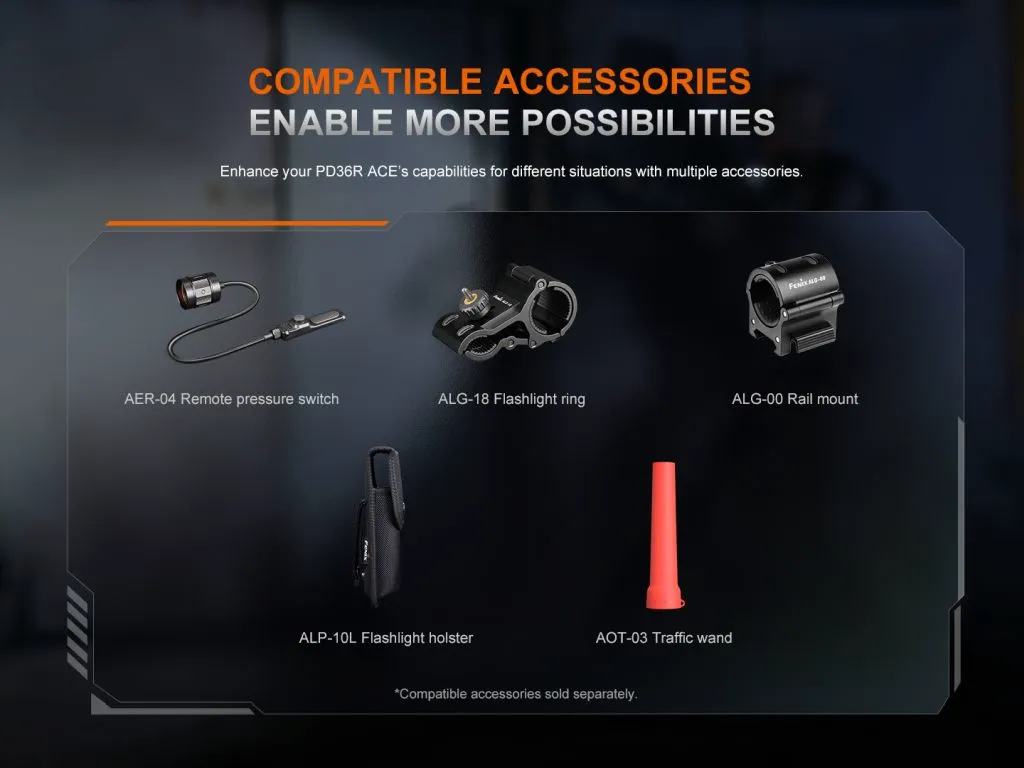

Accessories
